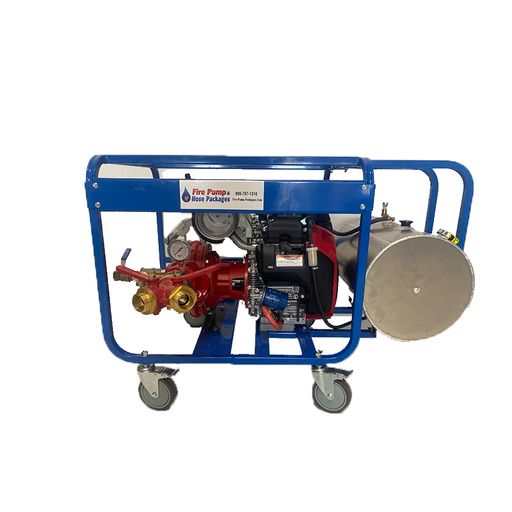

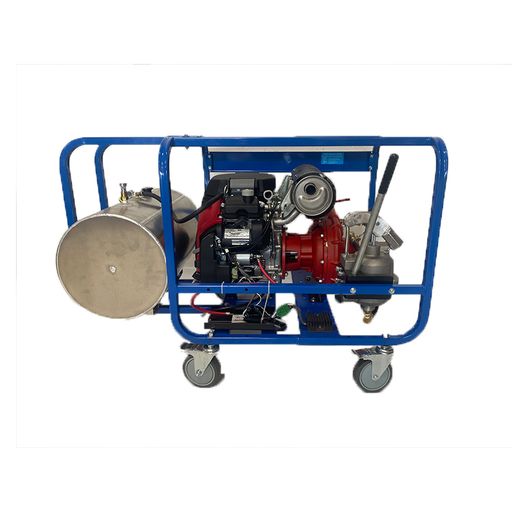

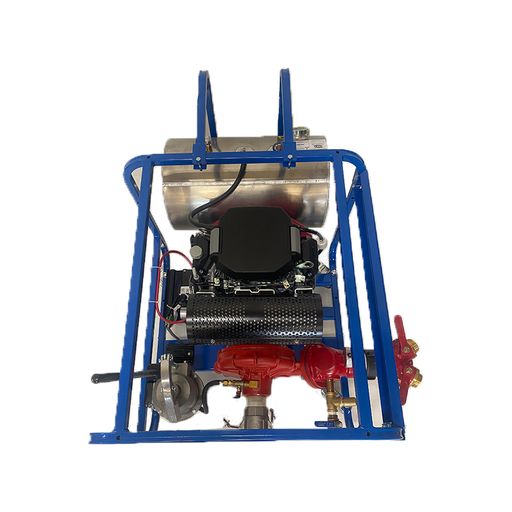

23HP Briggs & Stratton Vanguard AMT 2.5" Intake Fire Pump

$6,399.00

23HP Briggs & Stratton Vanguard AMT Fire Pump;  high-pressure and volume water pump for perimeter sprinkler systems at residential, resort, and large properties. Fire Pump uses water from a pool, water tank, pond, or lake.

Engine and Pump Specifications:

Engine Make & ModelBriggs & Stratton Vanguard
Engine Size627 CC, Twin V Cylinders
Engine RPM, under load4100 RPM
Electric StartYes, includes Battery Box, cables, trickle charger.
Battery Not Included; Purchase battery locally
Pump Make and TypeAMT (American Machine and Tool), Single Stage
Pressure Relief Valve (PRV)Yes – Automatic Water Release valve
Pump Suction Intake 2.5″ Cam Lock, Female
Discharge OutletsTwo 1.5” NH
E48
Water Spray Distance from 1.5″ Nozzle150 Feet

Warranty & Shipping

Manufacturer’s Limited WarrantyEngine 2 Years, Pump 1 Year
Shipping Weight and Notes360 pounds Electric Start.  Can NOT be shipped to HI and AK.
Item #0070

Description

23 HP Briggs & Stratton Vanguard AMT Fire Pump – Briggs Vanguard commercial Twin V engine is matched with AMT’s high pressure single stage pump.  This powerful, reliable, fire pump is designed for high pressure and high volume requirements of an outdoor perimeter sprinkler and/or hydrant system.  Pump has two 1.5″ NH fire hose connections each controlled by a separate ball valve.  The 2.5″ intake is designed for a high volume system of 100 GPM to 250 GPM.

Fire Pump can be portable with 5″ castor wheels (lockable) installed on frame, or installed in fixed position.

Pump has exhaust-driven priming system.  Includes 15 Foot 2.5″ Clear PVC Suction hose with debris filter; Suction hose connects to pump intake via Cam Lock.

Electric Start with Manual Recoil backup.  Note: Battery not included; purchase U1 Battery locally.

Portable high-pressure water pump for residential, rural, and resort wildfire protection using fresh water from pool, water tank, pond, or lake.  Can be combined with Fire Retardant Foam and/or Gel products for effective wildfire protection.

Optional equipment includes Water Tank Cam Lock connectors, high volume water filter and Phos Chek Foam Sprayers and Concentrate.

Options available during checkout include:  Auxiliary 6 Gallon Fuel Tank, Electric Vacuum Primer, or Custom Cover.

Call for information on custom hoses (in-stock) for connections to water tanks, or for consultation on selecting the right equipment for your specific needs.

Shipping Weight – 360 pounds

Dimensions, Full Package – 32.0″ L x 37.0″ W x 30.5″ H

Notes

A)  Electric Start option:   Includes Battery Box for protection from , cables, weather and trickle charger.

B)  Pressure Relief Valve:  If a high pressure water pump is run for more than a few minutes with nozzles turned off, the water will boil and potentially damage the pump. Pressure relief valve protects the pump from damage by releasing water when the internal pressure exceeds a pre-set level.  The pressure relief valve is pre-set, but must be adjusted during engine break-in period per the instructions.

C)  Suction Hose Cam Lock connection fittings:  Suction hose attaches and locks to pump quickly and without threading, saving critical minutes when starting the water pump.

D)  Fire Hoses:  Single external layer polyester and cotton weave with internal rubber lining and aluminum connectors.  Fire hoses are rated at 250 to 400 Service Test.  Hoses are manually double coiled for mounting and storage on the hand-truck for quick deployment, saving critical minutes when using.   1.5″ Fire Hoses have NH threads compatible with most State and Local Fire Agencies in USA.  1.0″ Fire Hoses have NPSH threads compatible with Federal Forest Service agency.

E)  Equipment Cart:  Full-size, heavy duty hand-truck has 800 pound capacity, and has mounting hardware for attachment of Pump Frame, Suction Hose, and Fire Hoses.  No-flat tires require no maintenance.

F)  Manufacturer’s Limited Warranty:  Warranty details are located in the Terms and Conditions of Sale here.

G)  Shipping:  FOB Destination, with Seller insuring all shipments.  Packages shipped in two (2) boxes will be delivered by Freight Carrier by appointment only.  Property access issues and special needs must be identified by customer prior to shipment.
